Scoreduino Devices

Website under construction. Not ready to sell yet.

Looking for seven segment display drivers ? You are on the right page.

Go through this page to know about Arduino based RF, Bluetooth controlled 7- segment display drivers

What is Scoreduino device?

An Arduino based controller to operate 74LS192 based up/down counters and scoreboards

Scoreduino is an Arduino based programmable controller/device/platform dedicated to building and operating 74LS192 based scoreboards and up & down counters. It is slightly different from the regular Arduino board. It has been modified to make the Arduino compatible with 74LS192. Scoreduino based scoreboards and up & down counters can be controlled with Scoreduino app.

Types of Scoreduino:

  • One sided Scoreduino- SCOREDUINO-A- See SCORE1, SCORE2 and SCORE3
  • Two sided Scoreduino- SCOREDUINO-B- See SCORE4
  • Scoreduino with inning display-SCOREDUINO-C- See SCORE5
  • Scoreduino for table tennis-SCOREDUINO-D- See SCORE6

What is Scoreduino app ?

Android app for controlling Scoreduino based up/down counters and scoreboards

Scoreduino app is an Android based app for controlling Scoreduino based up/down counters and scoredboards. The app has altogether 7 individual apps for different scoreboards and up & down counters.

The apps have been named as: SCORE1, SCORE2, SCORE3, SCORE4, SCORE5 and SCORE6. There is one more app titled CD4029 which can be used for CD4029 based up and down counter.

The app sends up and down control signal as well as specific number to the Scoreduino device.

Scoreduino apps communicate with Scoreduino devices via Bluetooth. It has been built using MIT media lab’s App Inventor For Android.

The app is FREE and it has been released under a Creative Commons Attribution ShareAlike 3.0 license.

Basic Trigger Module

A trigger module for up and down counters

The ‘basic trigger module’ works as a basic controller for up and down counters or seven segment display drivers. It has 3 switches for up, down and reset signal. Up switch increases the count and down switch decreases the count and the reset switch resets the count to zero.

Scoreduino-A

A programmable Arduino based controller and trigger module for up and down counters

The ‘SCOREDUINO-A’ module works as a basic controller for up and down counters and seven segment display drivers. It has 3 switches for up, down and reset signals. Up switch increases the count and down switch decreases the count and the reset switch resets the count to zero. It works with Scoreduino app as well as RF remote control.

Single digit common anode up and down counter/driver

It works with SCORE1, SCORE2 and SCORE3 modules of Scoreduino app

We have common anode seven segment display drivers in different sizes. The drivers are available for 1.2″, 1.8″, 2.3″, 3″, 4″ and 5″ seven segment displays.

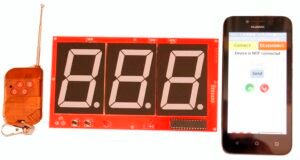

3 Digits Up and Down Counter

It is operated with RF remote control and Scoreduino app via Bluetooth

This is a 3 digits up and down counter based on Scoreduino or Arduino. It can be operated with Scoreduino app and RF remote control.

When operated with Scoreduino app, users can send specific number to the displays. For example, if a user send 999 from the app, the up down counter displays 999. There are two buttons to increase or decrease the count.

SCOREDUINO-B

A programmable Arduino based controller for scoreboards

The ‘SCOREDUINO-B’ module works as a basic controller for two teams/players scoreboard. It has a pair of headers on side of the board that can be connected to 2 digits seven segment display drivers.

2 teams/players DIY digital scoreboard

It works with SCORE4 app and Scoreduino-B

A two teams/players scoreboard has 4 digits which gets a name for its app as ‘SCORE4’. The available scoreboards have 2.3″, 3″, 4″ and 5″ displays.

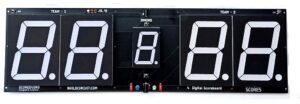

2 teams/players DIY digital scoreboard with innings display

It works with SCORE5 app and Scoreduino-B device

This scoreboard is also a  two teams/player scoreboard that has 5 digits and works with the SCORE5 module of the scoreduino app. The 4 digits are for displaying the scores of two teams and the middle single digit is for displaying the innings.

Tennis/Table Tennis DIY digital scoreboard

SCORE6 is an app for controlling a two-sided digital electronic table tennis scoreboard.

This scoreboard is also a two teams/player scoreboard that has 6 digits and works with the SCORE6 module of the Scoreduino app.

The 4 digits are for displaying the scores of two players and the two middle displays are for displaying the set won by each player.

CD4029 up and down counter module for Arduino

This is a basic up and down counter module for Arduino enthusiasts

CD4029 is a presettable binary/decade up and down counter chip. Scoreduino app has a feature to control the CD4029 based up and down counter module. You can connect the CD4029 counter module to Arduino and send up and down signals via Bluetooth. It is the most basic and simplest up and down counter for Arduino enthusiasts.
