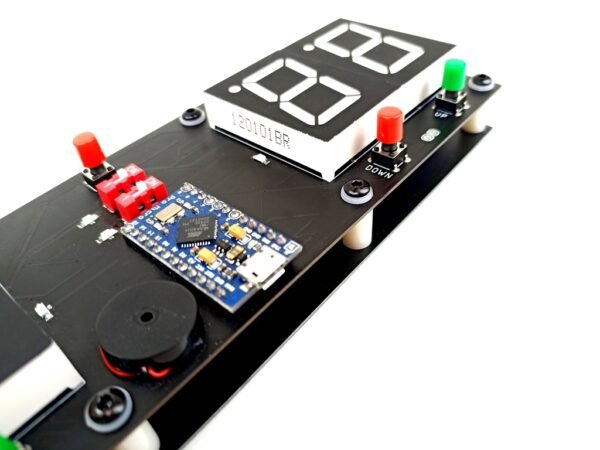

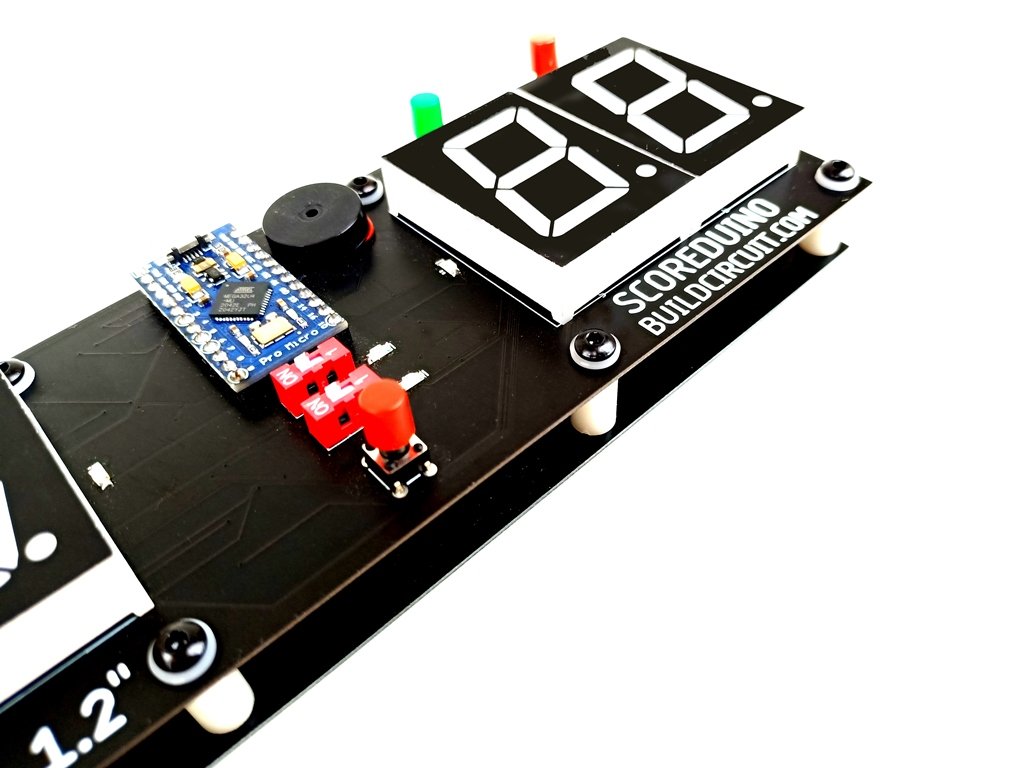

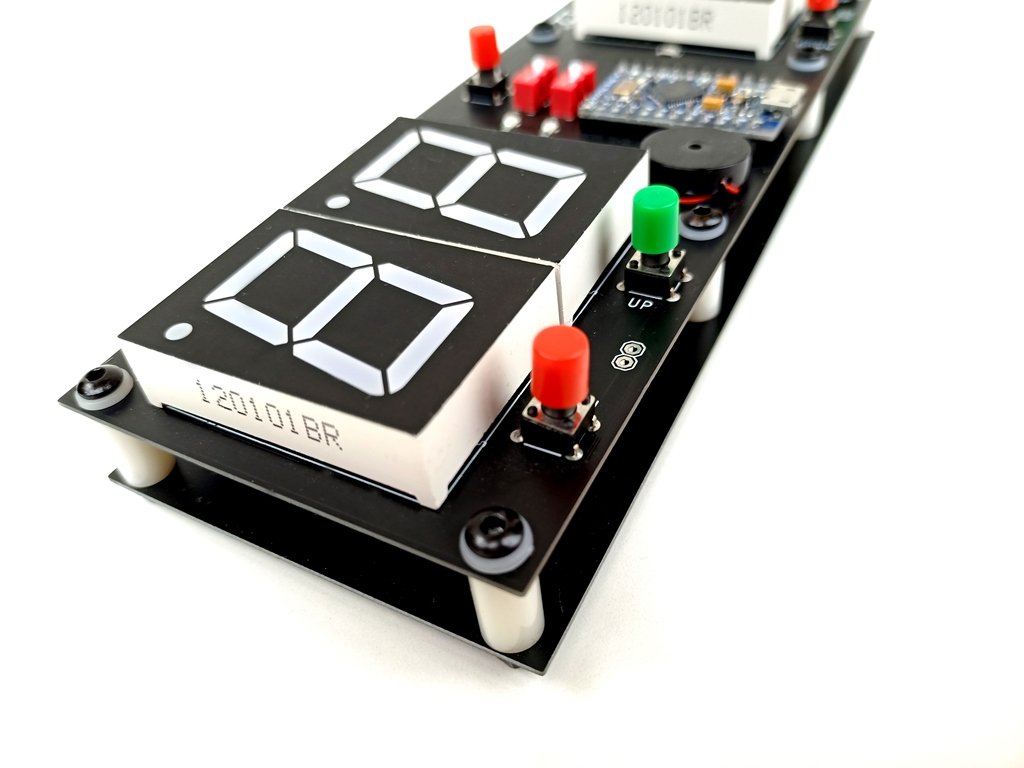

SCORE4- SCOREMICRO using Leonardo Pro Micro

Looking for bigger size Score4 Scoreboards ? Click here.



  • 2 players/teams Arduino Leonardo pro micro based digital Scoreboard
  • Programmable using FTDI basic breakout board
  • Available in one size: 1.2″ displays
  • Works with SCORE4 app and SCORE4T app
  • Send specific numbers to the displays using the app
  • When scores are displayed from 0-9, the left digit is off. For example, if a team scores a 7, the scoreboard displays only 7, not 07.
  • Bluetooth is the communication medium between the Scoreboard and app
  • You can send scores to two Scoreboards simultaneously with the app
  • The scoreboard does not reset even if the Bluetooth is disconnected.
  • Can be controlled with 4CH RF remote control
  • Use switches to manually increase or decrease the count
  • It works with 5V
  • Dimensions of the PCB: 188.82 mm* 66.04 mm
Category:

Read this page before you place an order

This is a DIY digital scoreboard for indoor games. This is just a smaller version of other 4 digits scoreboards. All the modules of the scoreboard come fully assembled. You just have to find a way to fix it on a wooden board or make other arrangements to make it beautiful and usable for your sport.



Features:

  • 2 players/teams Arduino Leonardo pro micro based digital Scoreboard
  • Programmable using FTDI basic breakout board
  • Available in one size: 1.2″ displays
  • Dimensions of the PCB: 188.82 mm* 66.04 mm
  • Works with SCORE4 app and SCORE4T app
  • Send specific numbers to the displays using the app
  • When scores are displayed from 0-9, the left digit is off. For example, if a team scores a 7, the scoreboard displays only 7, not 07.
  • Bluetooth is the communication medium between the Scoreboard and app
  • You can send scores to two Scoreboards simultaneously with the app
  • The scoreboard does not reset even if the Bluetooth is disconnected.
  • Can be controlled with 4CH RF remote control
  • Use switches to manually increase or decrease the count
  • It works with 5V

To build this scoreboard, we have combined three modules.

  1. SCOREDUINO_B: This is the central module of the Scoreboard. This is an Arduino-based controller supported by a Bluetooth module and an RF module for communicating with the 2 digits displays placed on its two sides. Read more about Scoreduino_B.
  2. The right display: The right display gets up and down count commands from the central Scoreduino-B controller. The commands can be sent by RF remote control or SCORE4 module of the Scoreduino app. Specific numbers can also be sent to the right display.
  3. The left display: The left display also gets up and down count commands from the central Scoreduino-B controller. The commands can be sent by RF remote control or SCORE4 module of the Scoreduino app. Specific numbers can also be sent to the left display.

Supporting modules:

  1. RF receiver and the remote control: It uses the basic 4CH RF module and remote control to send commands.
  2. Bluetooth module: The scoreboard can be controlled with SCORE4 module of the Scoreduino app and it communicates via Bluetooth. There are two apps designed for this scoreboard.
  • Score4 app without timer controller function
  • Score4T with timer controller function
Score4 app. You can connect the app to two scoreboards.
Score4T- This app has a controller for timer also. It connects to one timer and two scoreboards

Power supply:

  1. It can be powered with a basic 5V wall adapter. You will need a microUSB cable.

How does it work?

To understand this working principle of Scoreboard, you need to understand two modules:

  1. SCOREDUINO_B: This is an Arduino based controller that sends up and down commands to up and down counters. The schematic of SCOREDUINO_B.
  2. Single-digit up and down counter module: We have described how 74LS192/CD40192 based up and down counter modules work. You need to combine two of the single-digit counters and connect them to SCOREDUINO_B. The schematic of single-digit counter is here.

You can also read about Scoreduino_A.

Package includes:

  1. Fully electronically assembled Scoreboard
